Who ought to learn this text?
This text goals to supply a primary newbie degree understanding of NeRF’s workings by means of visible representations. Whereas varied blogs provide detailed explanations of NeRF, these are sometimes geared towards readers with a powerful technical background in quantity rendering and 3D graphics. In distinction, this text seeks to elucidate NeRF with minimal prerequisite data, with an elective technical snippet on the finish for curious readers. For these within the mathematical particulars behind NeRF, a listing of additional readings is supplied on the finish.
What’s NeRF and How Does It Work?
NeRF, quick for Neural Radiance Fields, is a 2020 paper introducing a novel technique for rendering 2D pictures from 3D scenes. Conventional approaches depend on physics-based, computationally intensive strategies akin to ray casting and ray tracing. These contain tracing a ray of sunshine from every pixel of the 2D picture again to the scene particles to estimate the pixel colour. Whereas these strategies provide excessive accuracy (e.g., pictures captured by telephone cameras carefully approximate what the human eye perceives from the identical angle), they’re typically sluggish and require important computational assets, akin to GPUs, for parallel processing. In consequence, implementing these strategies on edge gadgets with restricted computing capabilities is sort of not possible.
NeRF addresses this situation by functioning as a scene compression technique. It makes use of an overfitted multi-layer perceptron (MLP) to encode scene data, which may then be queried from any viewing route to generate a 2D-rendered picture. When correctly educated, NeRF considerably reduces storage necessities; for instance, a easy 3D scene can sometimes be compressed into about 5MB of knowledge.
At its core, NeRF solutions the next query utilizing an MLP:
What’s going to I see if I view the scene from this route?

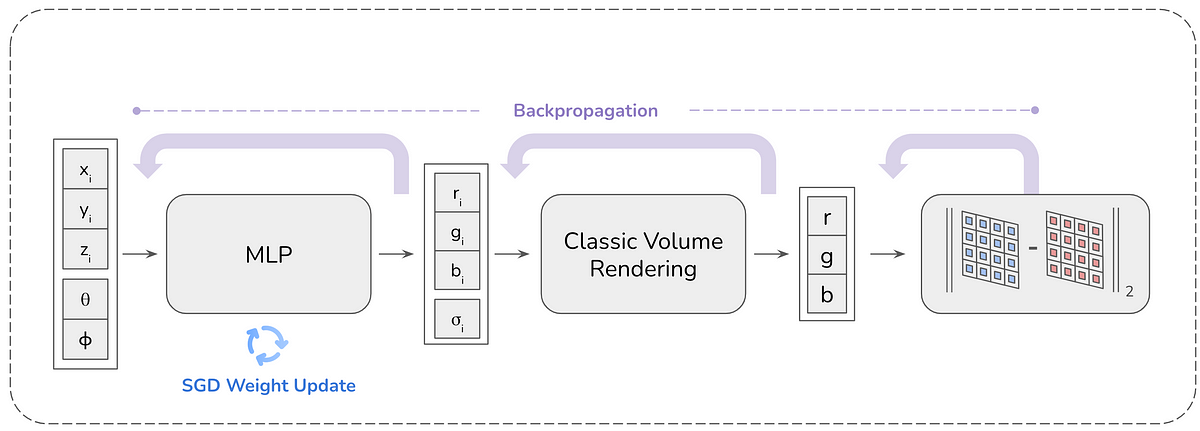

This query is answered by offering the viewing route (when it comes to two angles (θ, φ), or a unit vector) to the MLP as enter, and MLP gives RGB (directional emitted colour) and quantity density, which is then processed by means of volumetric rendering to provide the ultimate RGB worth that the pixel sees. To create a picture of a sure decision (say HxW), the MLP is queried HxW occasions for every pixel’s viewing route, and the picture is created. For the reason that launch of the primary NeRF paper, quite a few updates have been made to boost rendering high quality and pace. Nevertheless, this weblog will concentrate on the unique NeRF paper.
Step 1: Multi-view enter pictures
NeRF wants varied pictures from totally different viewing angles to compress a scene. MLP learns to interpolate these pictures for unseen viewing instructions (novel views). The data on the viewing route for a picture is supplied utilizing the digicam’s intrinsic and extrinsic matrices. The extra pictures spanning a variety of viewing instructions, the higher the NeRF reconstruction of the scene is. In brief, the fundamental NeRF takes enter digicam pictures, and their related digicam intrinsic and extrinsic matrices. (You’ll be able to study extra in regards to the digicam matrices within the weblog under)
Step2 to 4: Sampling, Pixel iteration, and Ray casting
Every picture within the enter pictures is processed independently (for the sake of simplicity). From the enter, a picture and its related digicam matrices are sampled. For every digicam picture pixel, a ray is traced from the digicam heart to the pixel and prolonged outwards. If the digicam heart is outlined as o, and the viewing route as directional vector d, then the ray r(t) might be outlined as r(t)=o+td the place t is the space of the purpose r(t) from the middle of the digicam.
Ray casting is completed to establish the elements of the scene that contribute to the colour of the pixel.
