One of many best climate-related engineering challenges proper now’s the design and development of a big, zero-emission, passenger airliner. And on this large enterprise, no airplane maker is as invested as Airbus.
On the Airbus Summit, a symposium for journalists on 24 and 25 March, prime executives sketched out a daring, tech-forward imaginative and prescient for the corporate’s subsequent couple of generations of aircraft. The spotlight, from a tech perspective, is a superconducting, fuel-cell powered airliner.
Airbus’s technique relies on parallel improvement efforts. Whereas enterprise the large R&D initiatives wanted to create the massive, fuel-cell plane, the corporate stated it should additionally work aggressively on an airliner designed to wring essentially the most potential effectivity out of combustion-based propulsion. For this aircraft, the corporate is focusing on a 20-to-30 % discount in gasoline consumption, in response to Bruno Fichefeux, head of future programmes at Airbus. The aircraft can be a single-aisle airliner, designed to succeed Airbus’s A320 family of plane, the highest-selling passenger jet plane in the marketplace, with nearly 12,000 delivered. The corporate expects the brand new aircraft to enter service a while within the latter half of the 2030s.
Airbus hopes to realize such a big effectivity achieve by exploiting rising advances in jet engines, wings, light-weight, high-strength composite supplies, and sustainable aviation fuel. For instance, Airbus disclosed that it’s now engaged on a pair of superior jet engines, the extra radical of which might have an open fan whose blades would spin and not using a surrounding nacelle. Airbus is evaluating such an engine in a venture with associate CFM International, a three way partnership between GE Aerospace and Safran Aircraft Engines.
And not using a nacelle to surround them, an engine’s fan blades will be very massive, allowing greater ranges of “bypass air,” which is the air sucked in to the again of the engine—separate from the air used to combust gasoline—and expelled to supply thrust. The ratio of bypass air to combustion air is a vital measure of engine efficiency, with greater ratios indicating greater efficiencies, in response to Mohamed Ali, chief know-how and working officer for GE Aerospace. Typical bypass ratios in the present day are round 11 or 12, however the open-fan design might allow ratios as excessive as 60, in response to Ali.
The companions have already examined open-fan engines in two completely different collection of wind-tunnel exams in Europe, Ali added. “The outcomes have been extraordinarily encouraging, not solely as a result of they’re actually good when it comes to efficiency and noise validation, but additionally [because] they’re validating the computational evaluation that we’ve executed,” Ali stated on the Airbus occasion.
A scale mannequin of an open-fan plane engine was examined final yr in a wind tunnel in Modane, France. The exams had been performed by France’s nationwide aerospace analysis company and Safran Plane Engines, which is engaged on open-fan engines with GE Aerospace.Safran Plane Engines
Gas-cell airliner is a cornerstone of zero-emission targets
In parallel with this superior combustion-powered airliner, Airbus has been creating a fuel-cell plane for 5 years below a program referred to as ZEROe. On the Summit, Airbus CEO Guillaume Faury backed off of a purpose to fly such a aircraft by 2035, citing the shortage of a regulatory framework for certifying such an plane in addition to the gradual tempo of the build-out of infrastructure wanted to provide “green” hydrogen at business scale and at aggressive costs. “We might have the chance of a form of ‘Harmony of hydrogen’ the place we might have an answer, however that might not be a commercially viable resolution at scale,” Faury defined.
That stated, he took pains to reaffirm the corporate’s dedication to the venture. “We proceed to consider in hydrogen,” he declared. “We’re completely satisfied that that is an power for the longer term for aviation, however there’s simply extra work to be executed. Extra work for Airbus, and extra work for the others round us to convey that power to one thing that’s at scale, that’s aggressive, and that may result in a hit, making a big contribution to decarbonization.” Lots of the world’s main industries, together with aviation, have pledged to realize zero net greenhouse gas emissions by the yr 2050, a indisputable fact that Faury and different Airbus officers repeatedly invoked as a key driver of the ZEROe venture.

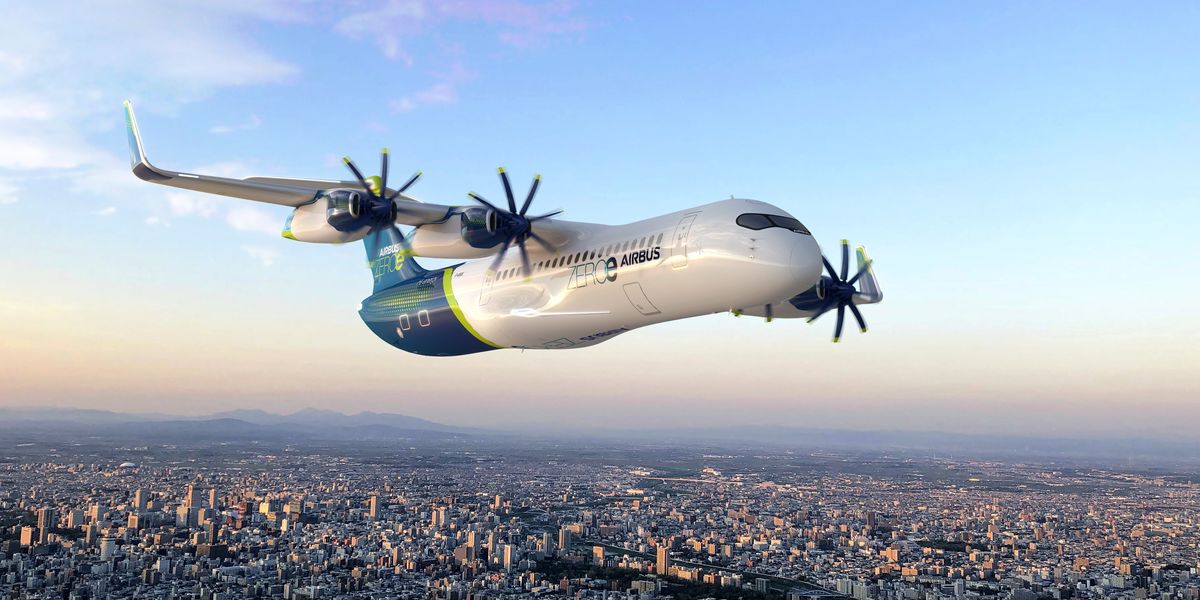

Later within the occasion, Glenn Llewellyn, Airbus’s vice chairman answerable for the ZEROe program, described the venture intimately, indicating an effort of breathtaking technological ambition. The envisioned plane would seat a minimum of 100 folks and have a variety of 1000 nautical miles (1850 kilometers). It could be powered by 4 fuel-cell “engines” (two on every wing), every with an influence output of two megawatts.
In response to Hauke Luedders, head of gasoline cell propulsion systems development at Airbus, the corporate has already executed in depth exams in Munich on a 1.2 MW system constructed with companions together with Liebherr Group, ElringKlinger, Magna Steyr, and Diehl. Luedders stated the corporate is specializing in low-temperature proton-exchange-membrane fuel cells, though it has not but settled on the know-how.
However the true stunner was Llewellyn’s description of a complete program at Airbus to design and check an entire superconducting electrical powertrain for the fuel-cell plane. “Because the hydrogen saved on the plane is saved at a really chilly temperature, minus 253 levels Celsius, we will use this temperature and the cryogenic know-how to additionally effectively settle down the electrics within the full system,” Llewellyn defined. “It considerably improves the energy efficiency and the efficiency. And even when that is an early know-how, with the fitting efforts and the fitting partnerships, this might be a recreation changer for our fuel-cell plane, for our totally electric aircraft, enabling us to design bigger, extra highly effective, and extra environment friendly plane.”
In response to a query from IEEE Spectrum, Llewellyn elaborated that the entire main elements of the electric propulsion system can be cryo-cooled: “electrical distribution system, digital controls, power converters, and the motors”—particularly, the coils within the motors. “We’re working with companions on each single part,” he added. The cryo-cooling system would chill a refrigerant that might flow into to maintain the elements chilly, he defined.
A gasoline cell plane “engine,” as envisioned by Airbus, would come with a 2-megawatt electric motor and related motor management unit (MCU), a fuel-cell system to energy the motor, and related techniques for supplying air, hydrogen fuel, liquid refrigerant, and different requirements. The ram air system would seize chilly air flowing over the plane to be used within the cooling techniques.Airbus SAS
May aviation be the killer app for superconductors?
Llewellyn didn’t specify which superconductors and refrigerants the workforce was working with. However high temperature superconductors are an excellent wager, due to the drastically lowered necessities on the cooling system that might be wanted to maintain superconductivity.
Copper-oxide primarily based ceramic superconductors had been invented at IBM in 1986, and numerous types of them can superconduct at temperatures between –238 °C (35 Ok) and –140 °C (133 Ok) at ambient strain. These temperatures are greater than conventional superconductors, which want temperatures beneath about 25 Ok. Nonetheless, business purposes for the high-temperature superconductors have been elusive.
However a superconductivity professional, utilized physicist Yu He at Yale College, was heartened by the information from Airbus. “My first response was, ‘actually?’ And my second response was, wow, this entire line of analysis, or utility, is certainly rising and I’m very delighted” about Airbus’s formidable plans.
Copper-oxide superconductors have been utilized in just a few purposes, virtually all of them experimental. These included wind-turbine mills, magnetic-levitation practice demonstrations, quick electrical transmission cables, magnetic-resonance imaging machines and, notably, within the electromagnet coils for experimental tokamak fusion reactors.
The tokamak utility, at a fusion startup referred to as Commonwealth Fusion Systems, is especially related as a result of to make coils, engineers needed to invent a course of for turning the usually brittle copper-oxide superconducting materials into a tape that might be used to kind donut-shaped coils able to sustaining very excessive present circulation and subsequently very intense magnetic fields.
“Having a superconductor to supply such a big present is fascinating as a result of it doesn’t generate warmth,” says He. “Which means, first, you will have a lot much less power misplaced immediately from the coils themselves. And, second, you don’t require as a lot cooling energy to take away the warmth.”
Nonetheless, the technical hurdles are substantial. “One can argue that contained in the motor, intense warmth will nonetheless must be eliminated on account of aerodynamic friction,” He says. “Then it turns into, how do you handle the general warmth inside the motor?”
An engineer at Air Liquide Superior Applied sciences works on a check of a hydrogen storage and distribution system on the Liquid Hydrogen Breadboard in November, 2024. The “Breadboard” was established final yr in Grenoble, France, by Air Liquide and Airbus.Céline Sadonnet/Grasp Movies
For this problem, engineers will a minimum of have a good atmosphere with chilly, fast-flowing air. Engineers will have the ability to faucet into the “large air circulation” over the motors and different elements to help the cooling, He suggests. Sensible design might “benefit from this kinetic energy of flowing air.”
To check the evolving fuel-cell propulsion system, Airbus has constructed a novel check middle in Grenoble referred to as the “Liquid Hydrogen Breadboard,” Llewellyn disclosed on the Summit. “We partnered with Air Liquide Advanced Technologies” to construct the ability, he stated. “This Breadboard is a flexible check platform designed to simulate key components of future plane structure: tanks, valves, pipes, and pumps, permitting us to validate completely different configurations at full scale. And this check facility helps us achieve important perception into security, hydrogen operations, tank design, refueling, venting, and gauging.”
“All through 2025, we’re going to proceed testing the entire liquid-hydrogen and distribution system,” Llewellyn added. “And by 2027, our goal is to take a fair additional main step ahead, testing the entire end-to-end system, together with the fuel-cell engine and the liquid hydrogen storage and distribution system collectively, which can permit us to evaluate the total system in motion.”
Glenn Zorpette traveled to Toulouse as a visitor of Airbus.
