A grid-scale battery within the Scottish Highlands acquired an opportunity to show its mettle in March when, 11 days after it began up, an enormous wood-burning generator in northern England shut down unexpectedly. Out of the blue 1,877 megawatts of provide was lacking, inflicting the 50-hertz frequency of the grid’s alternating present to crash beneath its 49.8-Hz working restrict in simply 8 seconds.
However the brand new 200-MW battery station leapt into motion inside milliseconds, releasing further energy to assist arrest the frequency collapse and preserve the grid operating.
Standard fossil-fuel turbines have traditionally helped thwart these sorts of issues. With the inertia of their spinning rotors, their kinetic energy gives a buffer towards speedy swings in frequency and voltage. However the response within the Highlands was considered one of the world’s first examples of a grid-scale battery commissioned to do this sort of grid-stabilizing job.

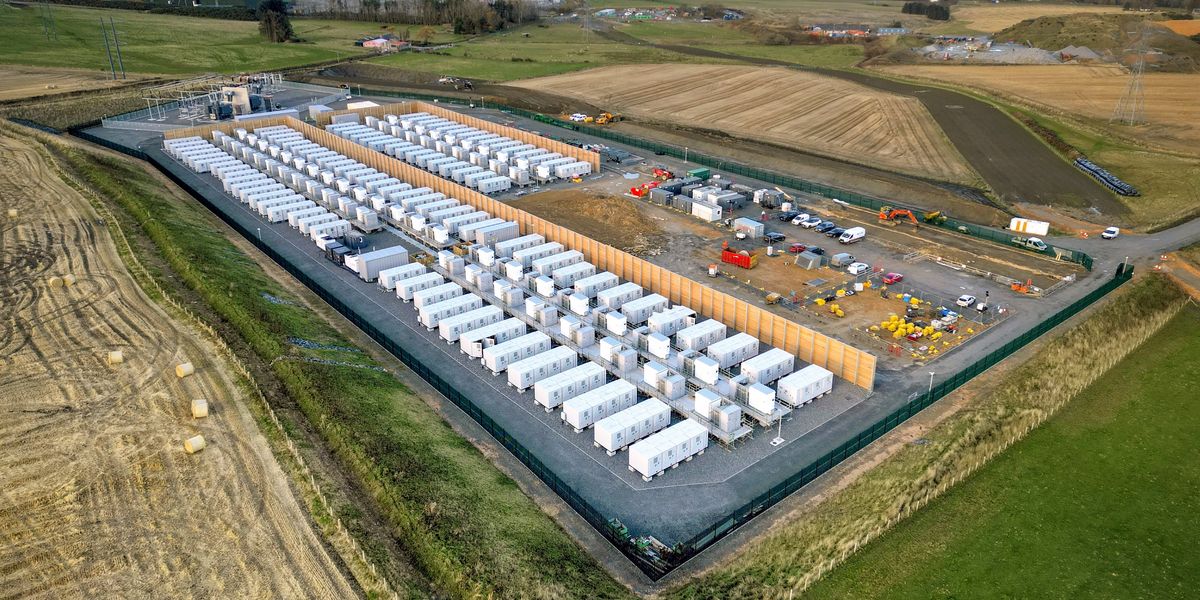

With out transferring elements, the lithium battery storage website—the most important in Europe and positioned Blackhillock, Scotland—simulates inertia utilizing power electronics. And in an modern twist, the battery website can additionally present short-circuit present in response to a fault, similar to standard energy turbines.
4 extra of those battery websites are beneath building in Scotland.
How Do Grid-Forming Inverters Work?
The batteries can ship these stabilizing companies because of their superior grid-forming inverters that convert direct current from lithium batteries into alternating present for the grid, and vice versa when the batteries are charging. Slightly than ‘following’ the grid’s frequency and voltage the way in which almost all different grid-scale inverters do, grid-forming inverters march to their own drum, and may typically act sooner than standard turbines.
“These grid-forming inverters that we’re putting in in Scotland—no person is doing that,” says Julian Leslie, chief engineer and strategic power planning director for the Nationwide Power System Operator (NESO), based mostly in Warwick, England. Andy Hoke, an knowledgeable in grid-forming expertise and principal engineer on the U.S. National Renewable Energy Lab, says Scotland’s additions positively push the envelope. “They’re tremendous thrilling initiatives,” says Hoke.
Can the UK Function With out Gasoline Crops?
NESO is counting on grid-forming batteries to assist obtain an bold purpose that it set for 2025: to point out that the United Kingdom can dwell with out its dextrous, stability-boosting gas-fired vegetation. The U.Okay. shut down its final coal-fired power plant final 12 months, and by the tip of this 12 months NESO plans to exhibit that it may possibly additionally function with out fuel vegetation.
“By the tip of the 12 months we’ll have a few hours with zero carbon operation, which goes to be superb,” says Leslie. It could be the world’s largest demonstration of fossil-free grid operation.
That is no ‘eco ego’ stunt. Elevated stability from energy electronics means extra photo voltaic and wind turbines can hook up with the grid, and minimizes how usually NESO should curtail their technology. London-based Zenobē, the grid battery operator behind three of the brand new Scottish battery websites, estimates that Blackhillock alone will save customers £309 million (US $418 million) over 15 years.
Scotland is floor zero for the U.Okay.’s grid decarbonization problem. It has already closed not solely its coal vegetation, but in addition its fuel vegetation. Its one remaining nuclear plant, Torness, will shut down by 2030. With Torness’s closing, the one synchronous turbines left in Scotland can be its few remaining small hydropower vegetation—machines which have for therefore lengthy maintained the steadiness of the grid with the mechanical pace of their rotors. The wind- and solar-power installations the nation is betting on for its power future have grid-following inverters that contribute little to grid stability.
So options are wanted. Operators worldwide have been reinforcing their grids by putting in synchronous condensers—standalone synchronous turbines whose rotors are saved spinning utilizing grid energy. Saved kinetic power is then out there when the grid stumbles, very like a standard energy plant. The Baltic states ordered a raft of these dedicated stabilizers forward of their current shift from syncing with Russia’s grid to Europe’s.
NESO, nonetheless, is taking a special tack in its preparation for zero-carbon operation. As an alternative of merely specifying synchronous condensers, NESO recognized the place it wanted extra stability and invited builders to pitch tech options. Grid-forming batteries scored huge in NESO’s 2022 tender. The £323-million ($427-million) package of winning bids included Scotland’s superior grid-scale batteries together with 5 synchronous condensers.
Brief-Circuit Present Innovation
What’s most modern concerning the grid-forming batteries is that NESO mandated that they supply short-circuit present, similar to synchronous turbines do. When falling timber and different mishaps join a transmission line to the bottom, short-circuiting the grid, energy vegetation’ synchronous turbines launch a surge of present that helps prop up voltage. The blast of present can be an necessary sign that triggers grid-protecting relays to open and isolate the faulted transmission phase in a fraction of a second.
Mimicking that conduct is troublesome for energy electronics. A grid-forming inverter sustains its personal voltage and frequency by delivering no matter present is required. When voltage drops, the controller instantly permits extra present by way of the inverter’s transistors. Up to now so good. However inverters can rapidly hit a wall. Excessive currents are like kryptonite for energy electronics, producing warmth that may rapidly fry their transistors. In consequence, inverters often function at solely 10 to twenty p.c above their present score, whereas currents from a synchronous generator can enhance 700 p.c throughout a fault.
The only solution to enhance present capability is so as to add extra transistors, however that’s dear for the insulated-gate bipolar transistors utilized in transmission-level converters. German inverter producer SMA Solar Technology, which equipped Blackhillock’s inverter, discovered a less expensive solution to meet the necessity, benefiting from the brevity of short-circuit present.
They programmed Blackhillock’s inverter to hit 250 p.c above nominal present to ship the 140 millisecond pulse that NESO requires, says Aaron Gerdemann, a enterprise growth supervisor for SMA. After that, the gadget will again down, permitting the circuits to chill.
Can Energy Electronics Stabilize the Grid?
Zenobē’s international director of community infrastructure, Semih Oztreves, predicts that grid-forming batteries will in the end nook the steadiness market because of their inherent multi-functionality. Whereas synchronous condensers largely sit idle, ready for a uncommon grid fault, Zenobē’s superior batteries earn every day income by doing what most different storage websites do. For instance, they arbitrage power, absorbing energy when it’s low cost and promoting when provides get tight.
However the short-circuit chops of grid-forming batteries haven’t but confronted a real-life take a look at. Till then, doubts linger about whether or not transmission relays will reply appropriately to the inverters’ digitally-defined surge of present. In a report final 12 months for Australian grid operator Transgrid, one knowledgeable suggested towards over-reliance on grid-forming inverters for short-circuit present, saying that it might carry “excessive to very excessive danger.” The utility later introduced 10 synchronous condensers and 5 grid-forming batteries to bolster its grid.
So for now, with the stakes excessive, protecting a number of of the pricier synchronous condensers within the combine in all probability is sensible, says Hoke. “It won’t be the cost-optimal resolution, however it could be the clever resolution,” he says.
