This 12 months, two corporations—Santa Clara, California-based Anello Photonics and Montreal-based One Silicon Chip Photonics (OSCP)—have launched new gyroscope–on-a-chip navigation systems, permitting for exact heading and distance monitoring with out satellite tv for pc indicators.
Such inertial navigation is more and more vital right this moment, as a result of GPS is prone to jamming and spoofing, which may disrupt navigation or present deceptive location knowledge. These issues have been well-documented in battle zones, together with Ukraine and the Middle East, the place navy operations have confronted vital GPS interference. For drones, which depend on GPS for positioning, the lack of sign might be catastrophic, leaving them unable to navigate and typically leading to crashes.
Optical gyroscopes have lengthy been seen as a substitute navigation expertise to satellite-based international navigation methods. Bigger-sized items like ring-laser gyroscopes have been around for the reason that Seventies. Nevertheless, shrinking these units right down to chip-size was far simpler mentioned than completed.
The optical gyroscopes produced beginning in the mid-1970s had difficulties sustaining the mandatory optical sign power for exact rotation sensing. Shrinking them solely made the signal-to-noise ratio worse. So, as most microelectronic units adopted the miniaturization pathway described by Moore’s Regulation, light-based gyroscopes remained large, cumbersome, and energy hungry.
Should you drive 100 kilometers, the system’s distance measurement can be correct to inside 100 meters, or 0.1 p.c of the space traveled.” —Mario Paniccia, Anello Photonics
That was the state of issues till Caltechelectrical engineering and medical engineering professor Ali Hajimiri and his workforce made a breakthrough that overcame earlier measurement and accuracy limitations. In a 2018 paper, they described how they created a solid-state gyroscope sufficiently small to suit on a grain of rice. Just like the optical gyroscopes that appeared earlier than it, this gyroscope leveraged the Sagnac effect, a precept first demonstrated in 1913 by French physicist Georges Sagnac.
The Sagnac impact happens when a beam of sunshine is break up into two and despatched in reverse instructions alongside a round path. If the gadget rotates, one beam reaches the detector forward of the opposite, permitting exact measurement of the rotation angle. As a result of this methodology doesn’t depend on exterior indicators, it’s proof against electromagnetic interference, vibration, and cyberattacks through an open communication channel—making it a perfect answer for functions the place GPS is unreliable or fully denied.
By introducing a method for eliminating noise, Hajimiri and his colleagues had been capable of create an optical gyroscope that was one–5 hundredth the dimensions of commercially accessible fiber-optic gyroscopes and comparable when it comes to sensitivity.

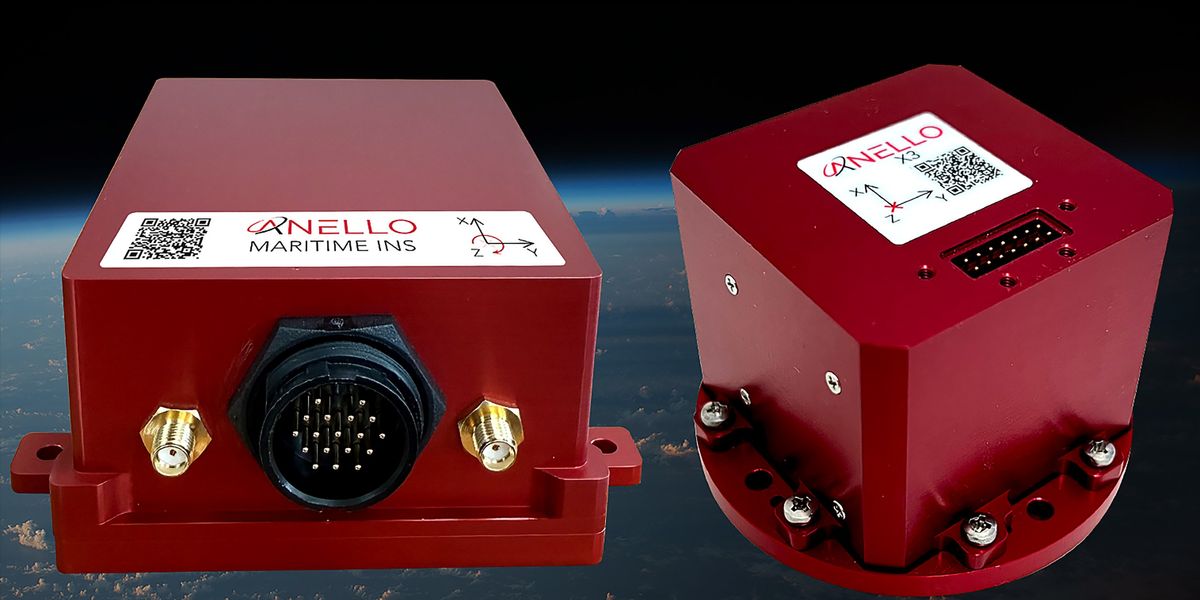

This pocket-size, chip-based optical gyroscope from Anello Photonics is simply as correct as bulkier variations.Anello Photonics
Anello and OSCP Enter the Market
Lower than a decade after Hajimiri’s breakthrough, Anello Photonics and OSCP at the moment are trying to reshape the navigation market with their gyroscope-based methods. They’ve launched additional refinements that permit extra miniaturization with out diminishing the gyroscopes’ effectiveness. Anello’s low-loss silicon nitride waveguides permit mild to flow into longer throughout the gyroscope, enhancing sign power and lowering error accumulation. Anello’s strategies additional suppress different noise sources, so a smaller waveguide holding much less mild—and due to this fact a fainter sign—continues to be adequate for correct rotation readings.
The consequence, says Mario Paniccia, Anello CEO, was showcased at CES in 2024 and earlier this 12 months. Paniccia explains that his firm’s inertial measurement units (IMUs), which include three chip-based gyroscopes and extra parts, match within the palm of an individual’s hand. They ship excessive precision for a number of functions, together with agriculture, the place autonomous tractors should keep completely straight furrows for as much as 800 meters. Longer distances are additionally no downside for the navigation system, he says. “Should you drive 100 kilometers,” says Paniccia, “the system’s distance measurement can be correct to inside 100 meters, or 0.1 p.c of the space traveled.”
OSCP can also be making strides in miniaturized navigation expertise. At CES 2025, OSCP founder and CEO Kazem Zandi unveiled an upgraded multi-gyroscope IMU that’s half the dimensions of its predecessor. “It’s not solely smaller, but additionally extra energy environment friendly and cheaper,” mentioned Zandi on the Las Vegas–primarily based tech expo. “These gyroscopes can present lifeless reckoning with location accuracy to inside centimeters.”
Anello’s and OCSP’s IMUs are designed to work alongside GPS, consistently monitoring location inputs. If GPS interference is detected, artificial intelligence (AI) inside both firm’s system robotically shifts navigation management to the gyroscopes. “If, for instance, you’re in New York,” explains Paniccia, “and the gyroscopes point out that you just’ve traveled 100 meters ahead, however the GPS says you’re now in Texas, the algorithms know to port management over to the [gyroscope].”
Based on Paniccia, Anello’s newest system was designed particularly for unmanned underwater and floor autos working within the vastness of the open ocean, the place no landmarks exist to help navigation. “Within the ocean, every little thing appears the identical,” he says. Within the maritime area, during which currents make navigation extra sophisticated than monitoring location on land or within the air, Paniccia says the Anello gadget’s location error is extra like 3 or 4 p.c of the space traveled.
Paniccia says he envisions a future the place miniaturized gyroscopes might be embedded into handheld units for firefighters, permitting them to navigate by means of smoke-filled buildings the place stairways and exits are not seen. “It is going to basically be an digital compass,” he says.
