Like many nerds, I’ve an curiosity in cryptography rooted within the wartime exploits of codebreaker and Ur-computer scientist Alan Turing. So I’ve adopted with curiosity IEEE Spectrum’s reporting on the burgeoning subject of postquantum cryptography. These methods are designed to frustrate even the immense potential of quantum computing, a know-how light-years past the electromechanical bombe that Turing used to interrupt the German Enigma cipher. I’m certain these new cryptographic strategies will work simply positive. However there may be one encryption scheme, recognized even in Turing’s time, that’s mathematically safe towards not simply quantum computers however any pc that may ever be invented: the one-time pad.
A one-time pad is a collection of random letters or numbers—sometimes 250 digits. The sender and receiver every have a duplicate of the pad, which is used for each encryption and decryption, following some simple but strict rules for pen and paper. It’s a cipher during which the important thing adjustments in an totally unpredictable manner after every character. With out predictability, there’s nothing for an attacking pc to get its tooth into.
Nonetheless, even essentially the most junior codebreaker in possession of two messages encrypted with the identical pad would have the ability to strip off the encryption and skim each. It’s due to this fact crucial to destroy every pad after you’ve used it. And it’s a foul thought to retailer the pad on a thumb drive or one thing related, as a result of computer systems and storage gadgets have a behavior of leaving residues of information round, even after the information has been formally deleted.
The one-time pad comes with another important limitations. The digits need to be really random—the numbers generated by the pseudo-random algorithms sometimes utilized by computer systems gained’t reduce it. And since you need to use a given pad solely as soon as, you want an entire bunch of them if you wish to ship greater than a single message. Plus, the pads must be bodily printed and shared by hand—you may’t ship them over a community.

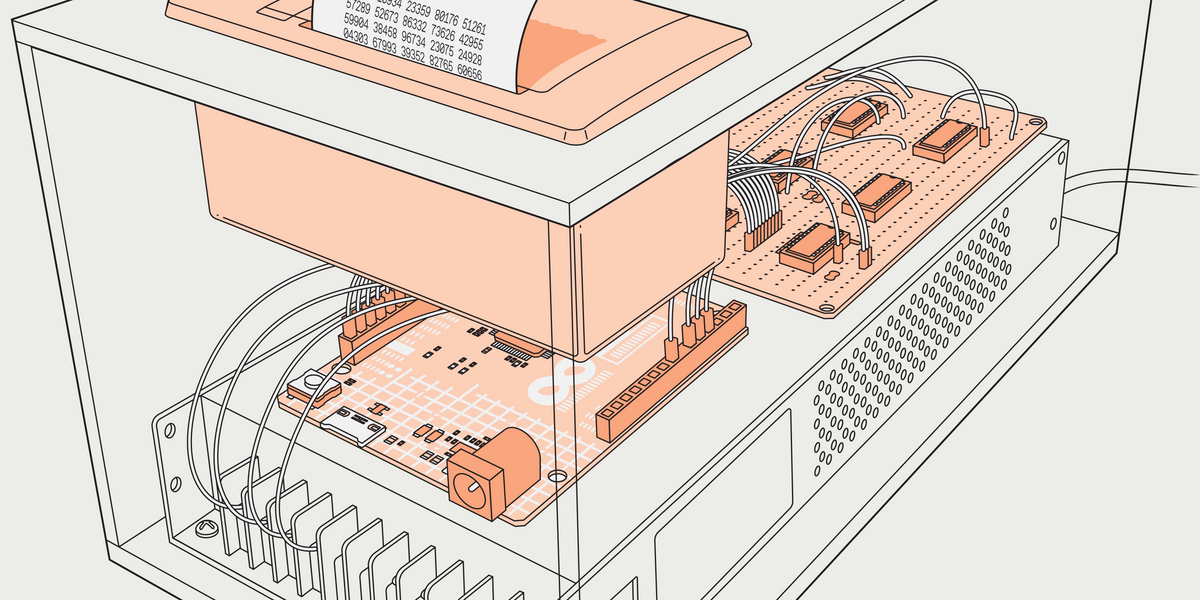

The random-number generator makes use of a set of 74HC-series logic chips [top right] to digitize electrical noise and current it as a random byte to an Arduino Uno Minima [top left]. The generator can produce roughly one byte each 200 microseconds, and the Uno converts this right into a single digit and builds up a collection of fifty pads with 250 digits every, which it sends to the printer [bottom].James Provost
I made a decision to construct a machine that makes coping with these issues slightly simpler. My Pad-O-Matic is constructed round a CSN-A2 thermal receipt printer I’d purchased on a whim a couple of years again. The printer is related to essentially the most clear know-how stack I may discover: a tortured transistor, a couple of logic chips, and a microcontroller with about 200 lines of my code. This code does nothing extra difficult than division, as a result of if I’ve discovered one factor about cryptography, it’s that until you actually know what you’re doing, attempting to be a intelligent clogs is a recipe for failure. The Pad-O-Matic is totally stand-alone.
The thermal receipt printer within the Pad-O-Matic lets me print an entire collection of pads. I nonetheless need to bodily share the pads, however not less than they’re in a compact roll. My correspondent and I can then tear off and destroy every pad after it’s been used.
With out predictability, there’s nothing for an attacking pc to get its tooth into.
I nonetheless wanted a superb supply of randomness—some essentially unpredictable bodily course of to transform into equally unpredictable bits. Luckily, that drawback was already solved for me. I discovered a neat little battery-powered circuit from Make: magazine that depends on {the electrical} noise produced by forcing electrons the mistaken manner throughout a transistor’s base and emitter terminals whereas leaving the collector terminal unconnected. Make:’s generator is a simplified model of a circuit by Aaron Logue, however Make: happily has a duplicate of the unique schematic. This makes use of 12 and 5 volts as an alternative of the 18 and 5 volts utilized by Make:’s model, so I may use an previous power supply I had that additionally gives sufficient additional present to drive the thermal printer. The unique circuit additionally has two good extra options for the price of a couple of additional chips.
The primary function is a clear microcontroller interface. It sends one byte at a time in parallel, alerting the microcontroller each time a brand new byte is out there. An alert is required as a result of the size of time wanted to generate a random byte varies barely as a result of different good function: automated debiasing, utilizing 4 flip-flops and an XOR gate. Debiasing implies that even when the electrical-noise generator tends towards, say, extra 0s than 1s, the ultimate output might be statistically balanced.
The Pad-O-Matic samples electrical noise at common intervals to create a stream of bits. To forestall the ultimate numbers from being biased towards these with many 0s or 1s, pairs of bits are in contrast. Provided that they differ are they examined additional, with the main digit being handed alongside. Eight of those debiased bits are packed right into a byte, which is then subjected to modular division to provide a random number between 0 and 9.James Provost
For my microcontroller, I lastly bought to make use of an Arduino Uno R4 Minima. Though this newest model of the beloved Uno got here out about 18 months in the past, I hadn’t discovered a undertaking that wanted it—till now. Its greater reminiscence—32 kilobytes of RAM versus 2 KB in the Rev3—is important, as a result of the Pad-O-Matic has to generate a whole collection of pads—50 in my case—and maintain it in reminiscence. With 250 digits per pad, that requires over 12 KB. Because the digits reside solely in RAM, there’s no threat of them leaving any hint of themselves behind.
The microcontroller produces digits from the incoming random bytes by first throwing away any byte with a worth over 250. Then it performs modular division by 10 on every remaining byte, leaving digits within the vary of 0 to 9.
I selected 50 pads per collection, although I had the reminiscence for extra, as a result of I truly need to print one collection to maintain and a duplicate to share, after which generate and print one other collection and its copy: The primary collection is for sending messages from me to my secret correspondent, and the second collection is for them to ship messages to me. This eliminates the danger of unintentionally utilizing the identical pad when messages cross one another. A complete of 100 pads nearly makes use of up one roll of thermal paper.
I put the entire thing in a wood enclosure, and presto! On the press of a button, the Pad-O-Matic whirs into life, spitting out good—and now marginally extra handy!—cryptographic security.
