In principle, one of many major purposes for robots ought to be working in environments that (for no matter motive) are too harmful for people. I say “in principle” as a result of in apply it’s tough to get robots to do helpful stuff in semi-structured or unstructured environments with out direct human supervision. This is the reason there’s been some emphasis just lately on teleoperation: Human software teaming up with robot hardware can be a very effective combination.
For this mix to work, you want two issues. First, an intuitive management system that lets the consumer embody themselves within the robotic to pilot it successfully. And second, a robotic that may ship on the sort of embodiment that the human pilot wants. The second bit is the tougher, as a result of people have very excessive requirements for mobility, energy, and dexterity. However researchers on the Italian Institute of Know-how (IIT) have a system that manages to verify each bins, due to its enormously highly effective quadruped, which now sports activities a pair of huge arms on its head.
“The first objective of this undertaking, performed in collaboration with INAIL, is to increase human capabilities to the robotic, permitting operators to carry out advanced duties remotely in hazardous and unstructured environments to mitigate dangers to their security by exploiting the robotic’s capabilities,” explains Claudio Semini, who leads the Robot Teleoperativo project at IIT. The undertaking relies across the HyQReal hydraulic quadruped, the newest addition to IIT’s quadruped household.
Hydraulics have been very visibly falling out of favor in robotics, as a result of they’re sophisticated and messy, and on the whole robots don’t want the absurd power density that comes with hydraulics. However there are nonetheless a couple of robots in energetic improvement that use hydraulics particularly due to all that energy. In case your robotic must be extremely dynamic or carry actually heavy issues, hydraulics are, not less than for now, the place it’s at.
IIT’s HyQReal quadruped is a type of robots. When you want one thing that may carry a giant payload, like a pair of huge arms, that is your robotic. Again in 2019, we saw HyQReal pulling a three-tonne airplane. HyQReal itself weighs 140 kilograms, and its knee joints can output as much as 300 newton-meters of torque. The hydraulic system is powered by onboard batteries and might present as much as 4 kilowatts of energy. It additionally makes use of a few of Moog’s pretty integrated smart actuators, which sadly don’t appear to be in improvement anymore. Past simply lifting heavy issues, HyQReal’s mass and energy make it a really secure platform, and its aluminum roll cage and Kevlar pores and skin guarantee robustness.
The HyQReal hydraulic quadruped is tethered for energy throughout experiments at IIT, however it may possibly additionally run on battery energy.IIT

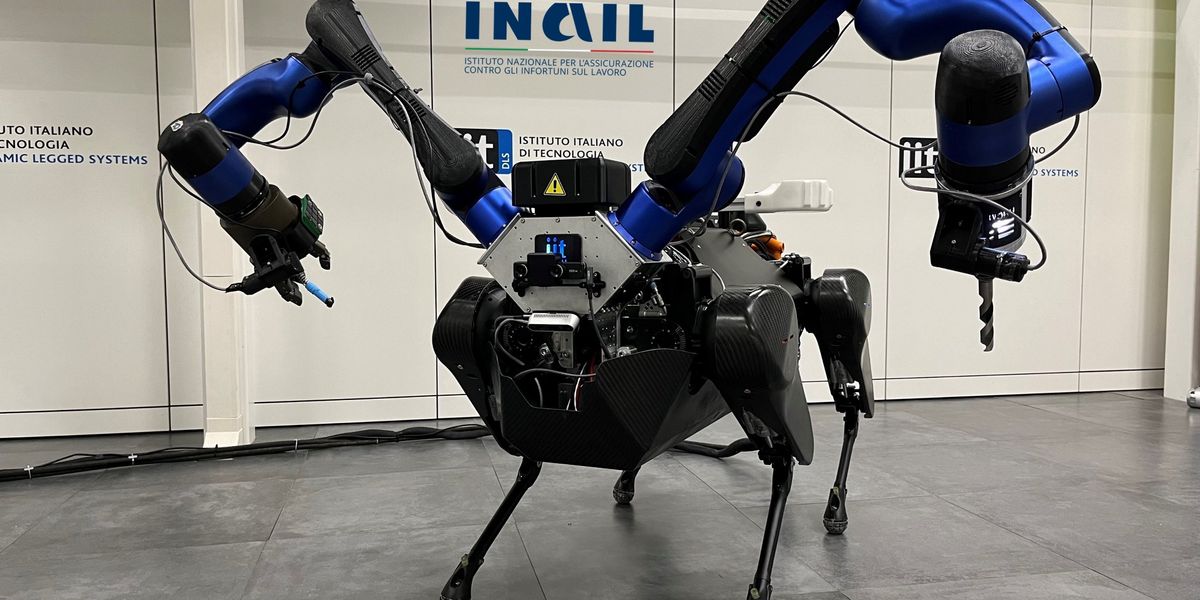

The arms that HyQReal is carrying are IIT-INAIL arms, which weigh 10 kg every and have a payload of 5 kg per arm. To place that in perspective, the utmost payload of a Boston Dynamics Spot robotic is simply 14 kg. The top-mounted configuration of the arms means they will attain the bottom, and so they even have an overlapping workspace to allow bimanual manipulation, which is enhanced by HyQReal’s skill to maneuver its physique to help the arms with their attain. “The event of core actuation applied sciences with excessive energy, low weight, and superior management has been a key enabler in our efforts,” says Nikos Tsagarakis, head of the HHCM Lab at IIT. “These applied sciences have allowed us to comprehend a low-weight bimanual manipulation system with excessive payload capability and enormous workspace, appropriate for integration with HyQReal.”
Maximizing reachable house is vital, as a result of the robotic will likely be underneath the distant management of a human, who in all probability has no explicit curiosity in or take care of mechanical or energy constraints—they only need to get the job performed.
To get the job performed, IIT has developed a teleoperation system, which is weird-looking as a result of it encompasses a very massive workspace that permits the consumer to leverage extra of the robotic’s full vary of movement. Having tried a bunch of various robotic telepresence techniques, I can vouch for a way vital that is: It’s tremendous annoying to be performing some activity via telepresence, after which hit a joint restrict on the robotic and must pause to reset your arm place. “That’s the reason you will need to examine operators’ high quality of expertise. It permits us to design the haptic and teleoperation techniques appropriately as a result of it supplies insights into the degrees of enjoyment or frustration related to immersive visualization, haptic feedback, robot control, and activity efficiency,” confirms Ioannis Sarakoglou, who’s liable for the event of the haptic teleoperation applied sciences within the HHCM Lab. The entire thing takes place in a completely immersive VR setting, after all, with some intelligent bandwidth optimization impressed by the best way people see that transmits higher-resolution photographs solely the place the consumer is trying.
HyQReal’s telepresence management system affords haptic suggestions and a big workspace.IIT
The system is designed for use in hazardous environments the place you wouldn’t need to ship a human. That’s why IIT’s associate on this undertaking is INAIL, Italy’s Nationwide Institute for Insurance coverage In opposition to Accidents at Work, which is understandably fairly concerned with discovering methods wherein robots can be utilized to maintain people out of hurt’s manner.
In assessments with Italian firefighters in 2022 (utilizing an earlier model of the robotic with a single arm), operators had been in a position to make use of the system to extinguish a simulated tunnel hearth. It’s first step, however Semini has plans to push the system to deal with “extra advanced, heavy, and demanding duties, which can higher present its potential for real-world purposes.”
As all the time with robots and real-world purposes, there’s nonetheless a number of work to be performed, Semini says. “The reliability and sturdiness of the techniques in excessive environments must be improved,” he says. “As an illustration, the robotic should endure intense warmth and extended flame publicity in firefighting with out compromising its operational efficiency or structural integrity.” There’s additionally managing the robotic’s vitality consumption (which isn’t small) to present it a helpful working time, and managing the quantity of data introduced to the operator to spice up situational consciousness whereas nonetheless protecting issues streamlined and environment friendly. “Overloading operators with an excessive amount of data will increase cognitive burden, whereas too little can result in errors and cut back situational consciousness,” says Yonas Tefera, who lead the development of the immersive interface. “Advances in immersive mixed-reality interfaces and multimodal controls, reminiscent of voice instructions and eye tracking, are anticipated to enhance effectivity and cut back fatigue sooner or later.”
There’s a number of crossover right here with the targets of the DARPA Robotics Challenge for humanoid robots, besides IIT’s system is arguably way more realistically deployable than any of these humanoids are, not less than within the close to time period. Whereas we’re simply beginning to see the potential of humanoids in fastidiously managed setting, quadrupeds are already on the market on the earth, proving how dependable their four-legged mobility is. Manipulation is the apparent subsequent step, nevertheless it must be extra than simply opening doorways. We’d like it to make use of instruments, carry particles, and all that different DARPA Robotics Problem stuff that may hold people secure. That’s what Robot Teleoperativo is attempting to make actual.
You could find extra element concerning the Robotic Teleoperativo undertaking in this paper, introduced in November on the 2024 IEEE Convention on Telepresence, in Pasadena, Calif.
